Harborside 3-210 Hudson Street Renovation

Harborside 3 is part of the Harborside Financial Plaza in Jersey City, and a $75 million renovation of the Mack-Cali Realty Corp. flagship property that offers a waterfront view of the Hudson River and New York City. Gensler was the architect chosen to modernize this mixed-use development. In addition, there were large open spaces that needed to be defined and repurposed—adding functional spaces with privacy, but without compromising the natural flow of daylighting.

The glazing contractor, Pure Glass, LLC., provided the expertise needed to install the multiple glass walls on the interior and the unique overhead glazing and wall-cladding design used in the elevator banks. The glass configuration and installation design were successful in achieving the desired aesthetic of creating visual depth while also accommodating the custom lighting fixtures.

FEATURED PRODUCT

Alice® Direct to Glass Printing
Low Iron
Satin Etched
Tempered Glass
Laminated
Mirror

OWNER/DEVELOPER

Mack-Cali Realty Corp.

architect

Gensler

Glazing Contractor

Pure Glass, LLC.

Location

Jersey City, NJ


project image

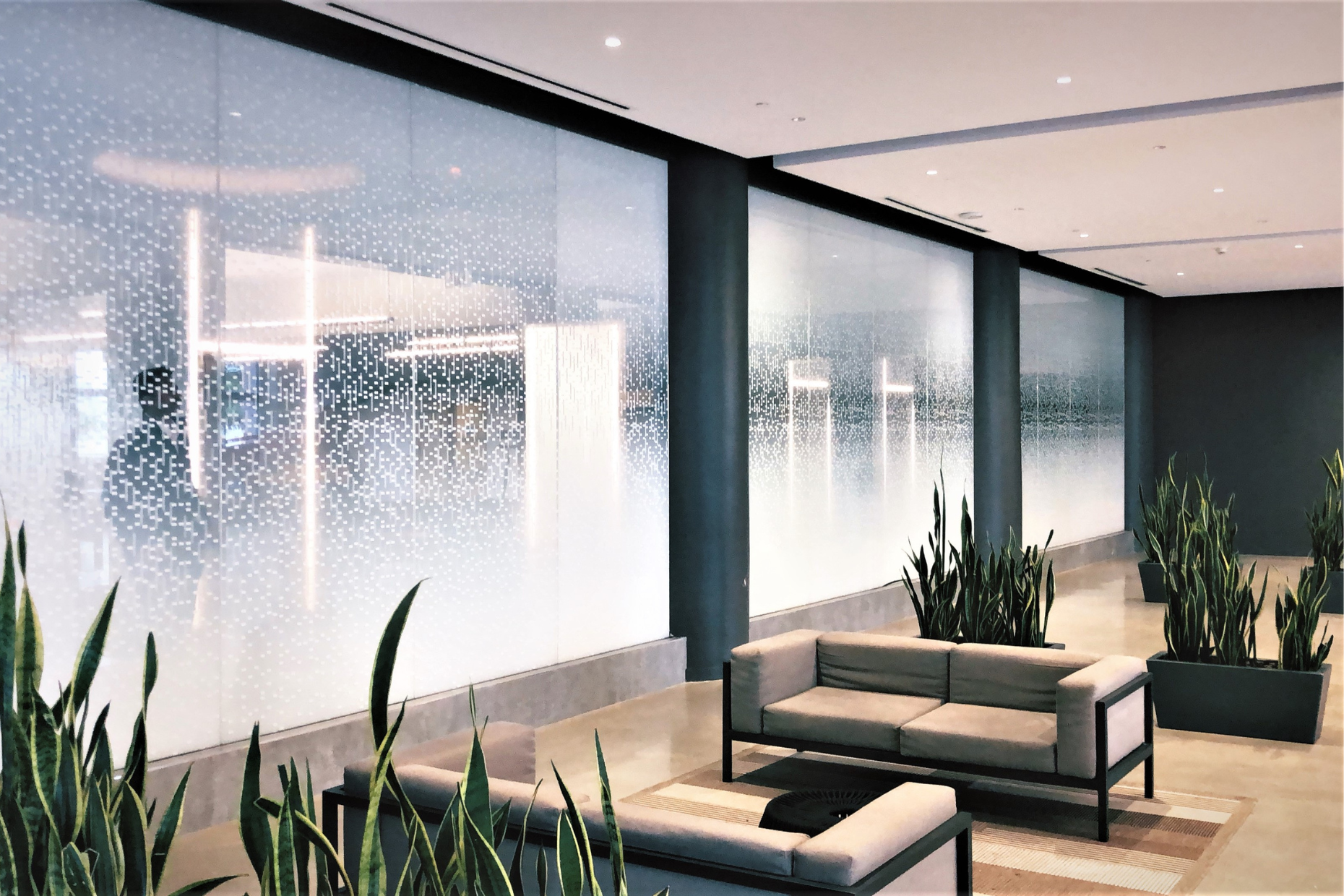

GGI fabricated the glass panels utilizing 3/8” low-iron glass, .060 PVB, 3/8” low-iron with a soft satin-etch and Alice® direct-to-glass custom printed design on the #3 surface. Alice was also used to create the fade for the upper and lower sections of each glass panel—adding an element of privacy required in designated areas.

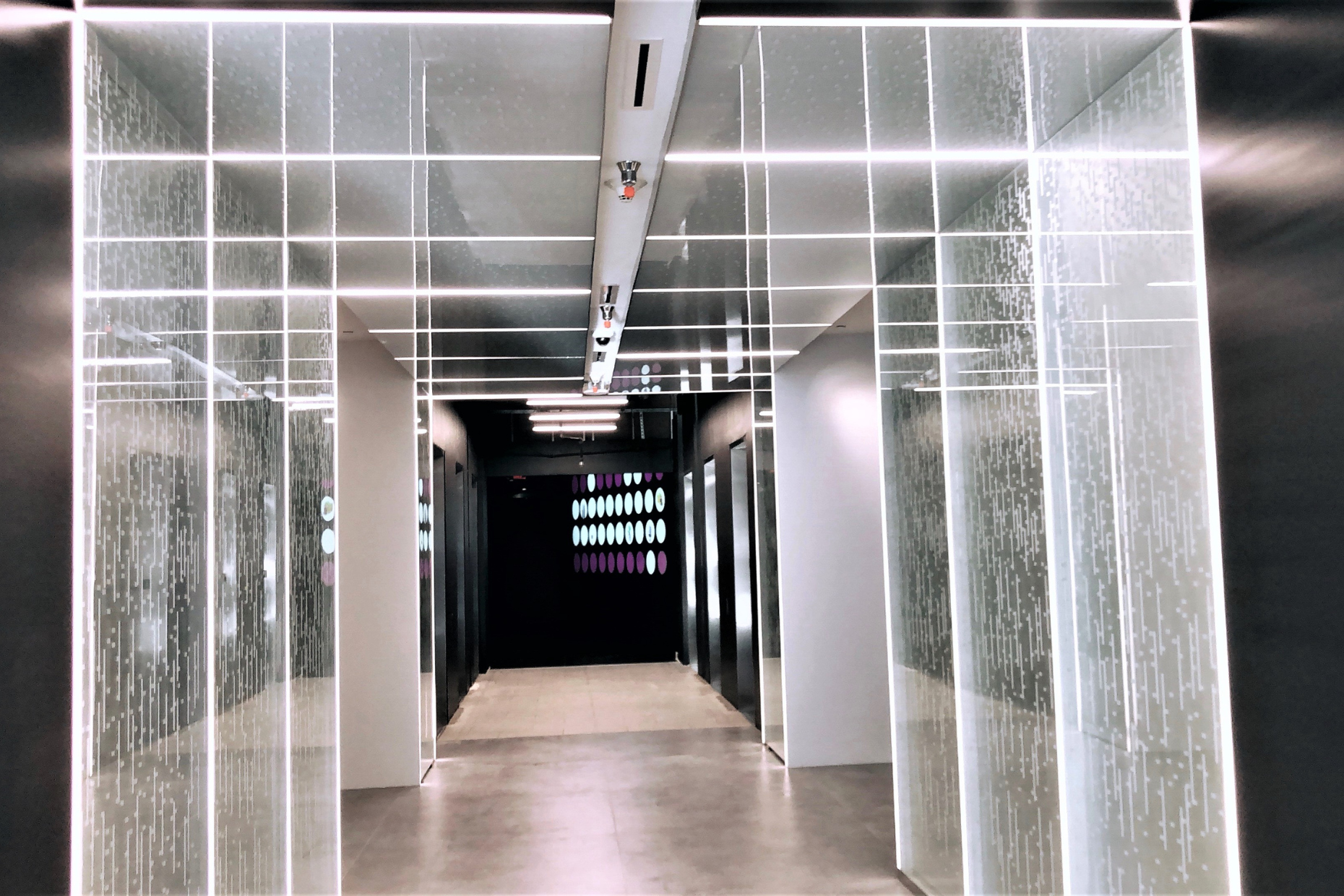

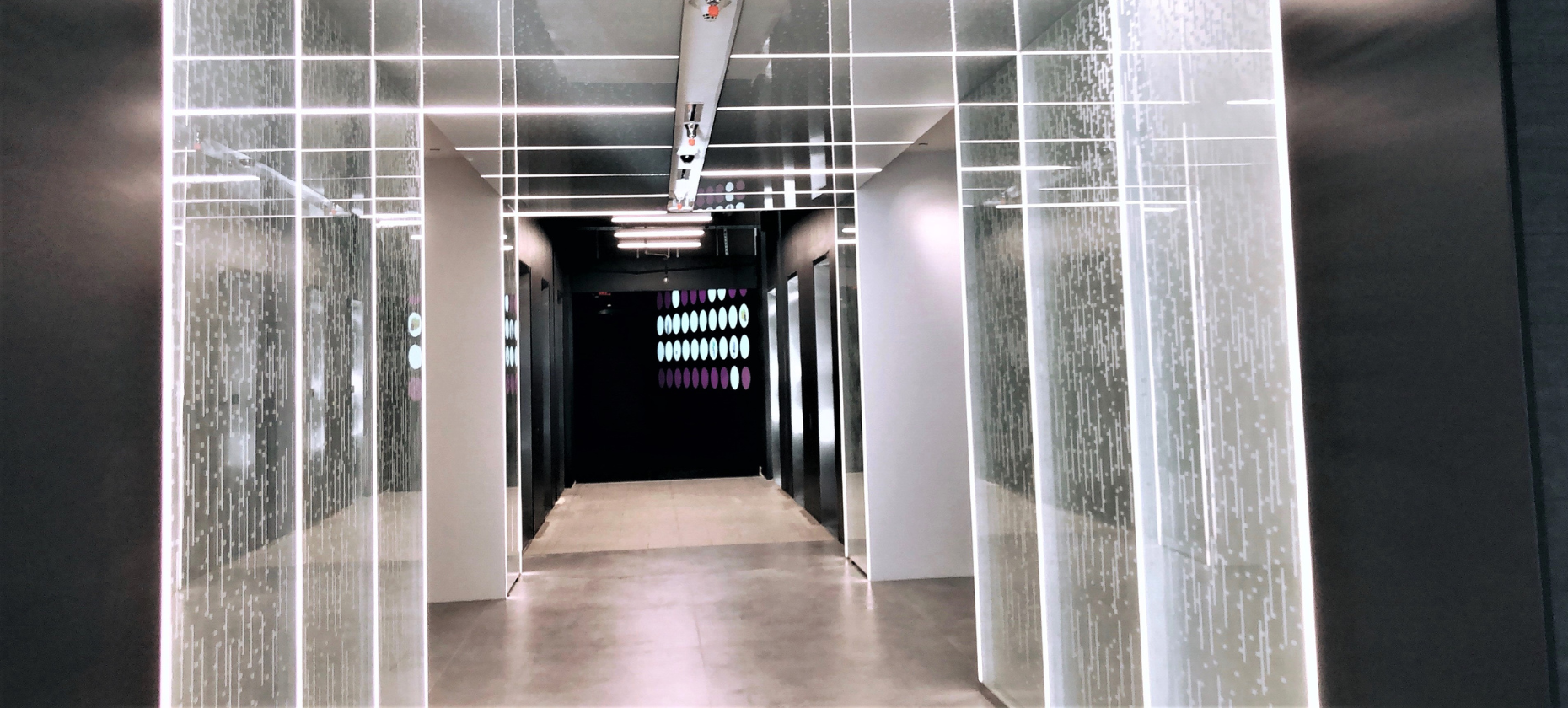

Elevator Bank Overhead Glazing: 1/4" low-iron with Alice® custom printed design surface #1 – .060 PVB – 1/4” low-iron with Alice design surface #3 and custom back-painting surface #4
project image
project image

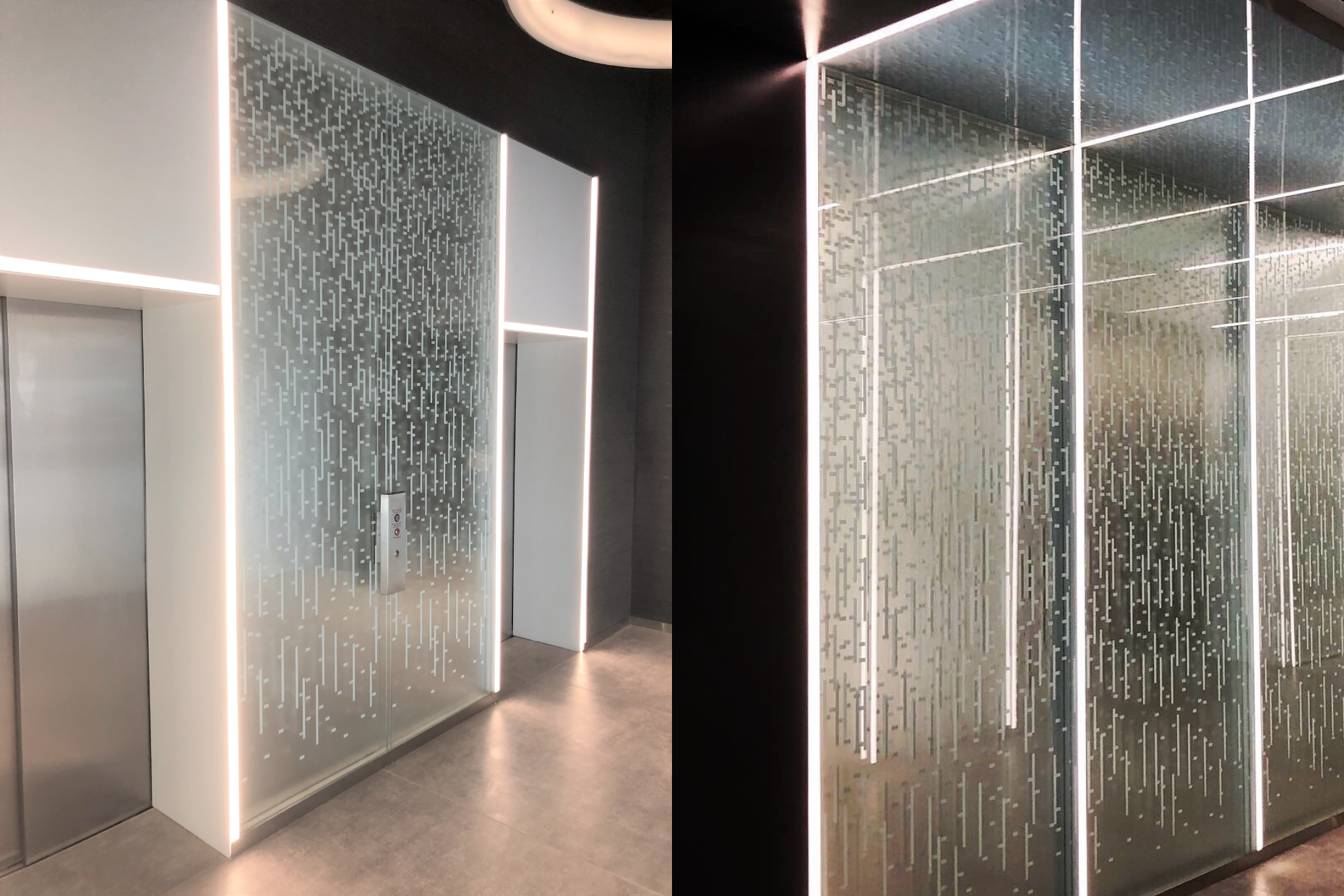

Elevator Bank Walls: 3/8” tempered low-iron with Alice® direct-to-glass custom printed design | 1/2” low-iron with Alice® design |1/4” low-iron satin-etched mirror
